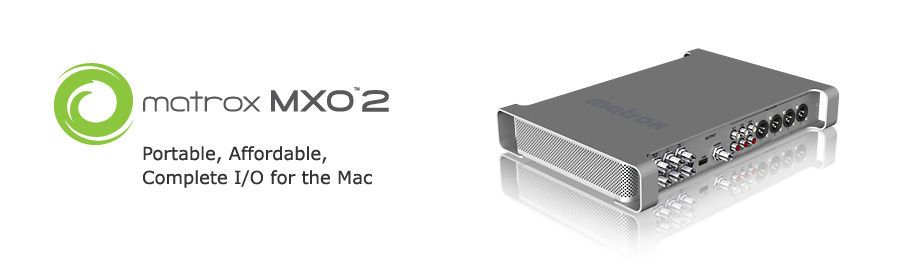

Matrox is leading the way in mobile editing. The new Matrox MXO2 is the first truly portable device that gives you broadcast-quality input/output, monitoring, and up/down/cross conversion to streamline your workflow with Apple Final Cut Studio 2 and Adobe CS3 Production Premium on the Mac. It’s lightweight, fits in your laptop bag, and runs for hours on a field battery. It lets you work seamlessly in any format you want. Enjoy new-found freedom with Matrox MXO2 – edit anywhere!

Key features

Truly portable – fits in your laptop bag, runs off a field battery (or its AC adapter)
HD/SD SDI, HD/SD analog component, Y/C, and composite inputs and outputs
Genlock – SD analog black burst (bi-level) or HD tri-level sync
HDMI input, output, and monitoring with calibration controls including blue-only
10-bit realtime hardware up/down/cross conversion
Up to five user selectable simultaneous video outputs – HD and/or SD on HDMI, SDI, and analog
Professional audio inputs and outputs with 5.1 surround sound monitoring
RS-422 machine control for frame-accurate capture and print-to-tape
Captures to a variety of codecs – Apple ProRes 422 HQ, 10-bit uncompressed HD, and many more
Supports file-based workflows – XDCAM, XDCAM HD, XDCAM EX, P2
Works with Final Cut Pro, Apple Color, Adobe Premiere Pro and all QuickTime applications that support the V-out component
For use with Intel-based MacBook Pros and Mac Pros

HD and SD inputs and outputs

Matrox MXO2 features a full complement of professional inputs and outputs. RS-422 machine control is provided for frame-accurate capture and print-to tape with Final Cut Pro and Adobe Premiere Pro. Up to five user selectable simultaneous video outputs, HD and/or SD on HDMI, SDI, and analog are supported.

Inputs

Video

SDI - HD/SD
Component - HD/SD
Y/C
Composite
HDMI - HD/SD

Audio

2 XLR - stereo pair (balanced)
2 RCA - stereo pair (unbalanced)
2 AES/EBU
SDI embedded – up to 8 channels
HDMI embedded - up to 8 channels

Outputs

Video

2 SDI - HD/SD
Component - HD/SD - 12-bit
Y/C - 12-bit
Composite - 12-bit
HDMI - HD/SD

Audio

4 XLR - 2 stereo pairs (balanced)
6 RCA - for surround sound monitoring (unbalanced)
2 AES/EBU
SDI embedded – up to 8 channels
HDMI embedded - up to 8 channels

Genlock

Matrox MXO2 provides SD analog black burst (bi-level) or HD tri-level sync genlock. It can genlock to any type of video input or to house sync. Timing offset controls can be used to align your video output relative to your external genlock source to compensate for cable delays within your facility.
