:.Matrox Axio HD.:
Realtime HD and SD editing with HD I/O for broadcast and post
- Uncompressed 8- or 10-bit HD and SD editing
- Dedicated on-board GPU for guaranteed realtime Matrox Flex effects
- DV-1394, HD/SD SDI input and output
- RGB and YPbPr analog component output
- 4-in/8-out AES/EBU audio, 8-in/8-out SDI embedded audio, 2 XLR outputs for monitoring
Matrox ได้ออก AXIO HD มาเพื่อใช้สำหรับงานอุตสาหกรรมภาพยนตร์บน High Definition Format ซึ่งปัจจุบันได้รับความนิยมมากขึ้นเรื่อยๆทั้งในประเทศไทยและในระดับโลก Matrox Axio ถูกสร้างขึ้นบนความสำเร็จของ Matrox Digisuite Family ที่มีผู้ใช้งานมากกว่า 200,000 รายทั่วโลก และจากความสำเร็จนี้เอง ปัจจุบันได้ถึงเวลาของ High Defination, Axio HD จึงถูกสร้างขึ้นเพื่อรองรับงานทางด้านโฆษณา, มิวสิควีดีโอ, หรืองานภาพยนตร์ บนมาตรฐาน HD ได้อย่างสมบูรณ์แบบ ในราคาที่ถูกกว่าคู่แข่ง โคยที่ยังคงคุณภาพไว้สูงสุด
Axio HD Turnkey System
ราคาเริ่มต้นเพียง: 1,530,000.-
AXIO HD ปัจจุบันเปลี่ยนรุ่นเป็น AXIO LE
หน่วยงานหรือบริษัทใด ต้องการจัดซื้อกรุณาแก้ไขเสปคเป็น AXIO LE ด้วยนะครับ
HP Workstation xw8600
Microsoft Windows Vista 32-bit
Intel Xeon Quad Core 2.33 GHz 12MB 1333 Mhz FSB
Intel Xeon Quad Core 2.33 GHz 12MB 1333 Mhz FSB
NVIDIA Quabro FX1700 512MB PCI-E (2 monitors)
4GB DDR2-667 ECC reg
73 GB SAS 10000 rpm (1st)
18X DVD+/-RW, DL (1st) Floppy disk drive
HP PS/2 Standard keyboard HP PS/2 Scroll mouse
Front Card Guide and Fan Kit
Marox Axio HD (Part number AXIO-HD-N)
Includes the Matrox Axio editing cards, the Matrox Axio HD
breakout
box, and the Adobe Video Collection (Adobe Premiere Pro, Adobe Encore DVD, Adobe Audition and Adobe After Effects)
External Media 2TB
Dual HP Flat Panel LCD Monitor 24"
Warranty and Special Services
- 3 year for Computer
- 1 year for Matrox AXIO and Huge Storage
- On-site Warranty by Real Type
- Real Type 24hr Sevice (Replacement Warranty)
|
|
|
|
 |

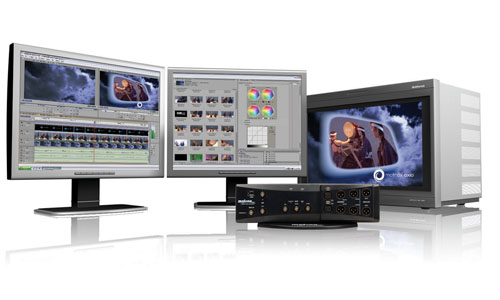

Matrox Axio HD
Most powerful
realtime engine for HD and SD editing
The Matrox Axio family of HD and SD platforms provides a complete post-production solution that lets you get the best from the Adobe CS3 Production Premium software. The Axio platforms are designed to give you the most comprehensive realtime feature set, the highest quality native codec technology, and complete file-based workflows totally integrated with the Adobe software.
There are three Matrox Axio platforms to choose from, Matrox Axio HD, Matrox Axio SD, and Matrox Axio LE. All offer ultra high performance editing in HD and SD formats. They differ only in terms of the editing codecs supported, the method of performing Matrox Flex GPU effects, and the audio and video inputs and outputs provided on the breakout boxes.
.
Key Features
- Makes Adobe Premiere Pro the foremost HD and SD editor for broadcast and post
- Full-resolution, mixed-format, multi-layer realtime editing of HD and SD video, graphics, and effects
- Realtime Matrox Flex CPU effects such as color correction, speed changes, and chroma/luma keying
- Realtime and accelerated Matrox Flex GPU effects such as 2D/3D DVE, blur/glow/soft focus, and shine
- Native MXF file support for Panasonic P2, Sony XDCAM, and Sony XDCAM HD in Adobe Premiere Pro and After Effects
- Support for Omneon media servers via native MXF file transfers
- Extensive native codec support in HD and SD uncompressed, MPEG-2 I-frame, DVCPRO HD, MPEG HD, HDV 1080i, HDV1080p, HDV 720p (JVC ProHD), IMX, DVCPRO50, DV, DVCPRO, DVCAM
- Realtime playback of 32-bit compressed and uncompressed AVI with alpha
- 24 fps editing in HD and SD with pull down, reverse pull down, and Panasonic VariCam support
- Realtime high-quality downscaling from HD to SD
- Accelerated export to DVD, multimedia formats including Flash Video, and Adobe Clip Notes
- WYSIWYG for Adobe After Effects, Bridge, and Photoshop, Autodesk Combustion and 3ds Max, eyeon Fusion, NewTek LightWave 3D, and Windows Media Player
- Matrox EZ-MXF utility for native MXF file support in Video for Windows (AVI) applications
The Matrox Axio software and hardware components are integrated
into an approved workstation and sold through a network of Matrox
authorized resellers. These resellers also provide installation and
training services to customers worldwide.
